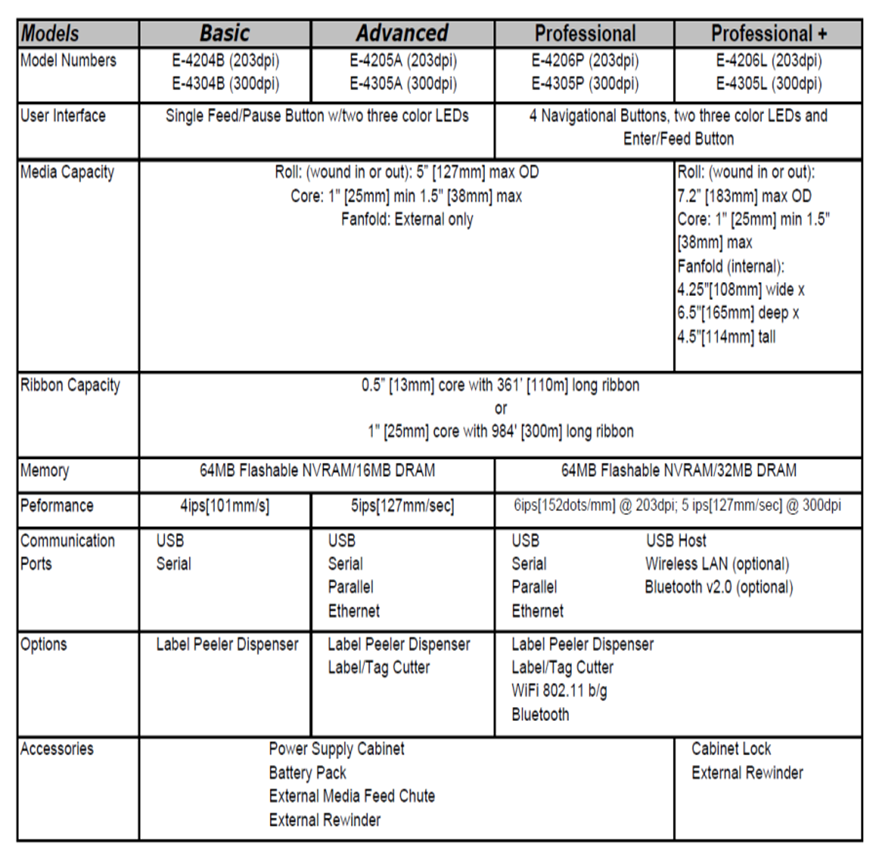

Honeywell Datamax E-Class Mark III Printers E-4204B Basic - E-4205A Advanced & Accessories
The Datamax O'Neil E-Class Mark III thermal bar code printer family is designed to be the printer of choice when value, performance and features are the primary printer requirements. The E-Class Mark III Family consists of the E-4205e and E-4304e printers. E-Class Mark III printers are capable of printing a wide variety of labels in applications ranging from small office shipping requirements to compliance and general purpose product identification labels and tags.
Hospitals, medical laboratories, automobile service shops, shipping/mail centers, and inventory stock rooms are all typical examples of the types of businesses that can benefit from using the E-Class Mark III printers. And with PDF417 and MaxiCode 2D bar code capabilities, the E-Class Mark III can print complex transportation symbols and label formats. Printers are available in both Direct Thermal or Thermal Transfer configurations and are available with an options list developed to suit virtually any low- to medium volume label printing application.The Datamax E-Class family is a lightweight, space-saving line of thermal printers designed with leading edge technology for a multitude of label and tag printing applications.
The Honeywell Datamax E-Class Mark III thermal desktop printer offers a proven and reliable label and tag printing solution in a compact footprint. It is ideal for a vast number of diverse
applications that require a dependable and cost effective barcode printer. The E-Class has a uniquely designed adjustable print mechanism with advanced media sensing.
The Honeywell Datamax E-Class is more than a shipping or address label printer; it is uniquely designed to reliably print on the tough durable materials needed in many applications. Whether the E-Class is printing crystal clear durable jewelry tags or high resolution tough product
serial labels, the E-Class delivers what is normally expected from much more expensive printers. The E-Class is a reliable and cost effective printer that many large and small businesses around the world rely on for all their barcode label and tagging needs.
These printers are engineered for small size but packed with big features including an advanced 32-bit
multi-tasking processor with two megabytes of memory, serial, parallel, and USB communication
interfaces, and a three-button control panel. In addition, a full complement of industry standard linear
bar codes as well as the complex two-dimensional symbologies such as MicroPDF417, Datamatrix,
Maxicode, Aztec, and TLC39 are resident in the printer's memory.
All E-Class printers share an assortment of options including a cutter, a label present sensor, and an
assortment of international character font sets. Also, connectivity is never an issue because the EClass
printer can be easily networked with the Datamax DMX-100 Ethernet print server.Honeywell Datamax E-Class Mark III Options
The Thermal Transfer option allows the printer to use a ribbon for thermal imaging. The ink/wax from the ribbon transfers to the media to create an image with exceptional clarity on a variety of materials. Different ribbon and label/tag combinations can create highly durable labels and tags that can withstand extreme temperatures and physical abuse. The thermal transfer option is easily installed in the field by a low level technician.
The internal Ethernet option allows the printer to be easily installed on a LAN, local area network, and be shared amongst many users. The printer is establishes communications through the network via a wired LAN cable.
The internal wireless Ethernet option allows the printer to be easily installed on a LAN, local area network, and be shared amongst many users without the need of a communications cable. The printer is establishes communications through the network via a wireless 802.11 b/g connection and can be mobilized by adding a powered cart or the external battery pack. The wireless Ethernet option includes the internal Ethernet option if the need arises.
Adjustable Media Sensor
The Adjustable Media Sensor option allows the printer to detect the position of the gap, notch, hole, or reflective mark at any locations across the media.
Real Time Clock
The real time clock option allows the application software to refer to the time maintained on the printer for printing date and time stamps on labels. This is very useful in applications needing to print the current date with a reliable system clock.
Standard Cutter (Guillotine)
This guillotine cutting device provides automatic cutting of tags and labels with a maximum thickness of .005” (.127 mm) so that they can be easily taken from the printer. This option is field installable and attaches to the front of the printer.
The present sensor option allows the printer to be configured for in-pacing application where the printer is only printing a label as needed. With the sensor installed, the printer will not print the next label until the previous printed label has been removed from the printer. The sensor is available in two versions, a look-up and a look-down sensor. The selection is dependent on the media being printed and it having a white reflective surface matching where the sensor is located. The look-down sensor is located closer to the peeler and can sense smaller labels. Both sensors are field installable by a low-level technician.
Expanded memory is a factory installed option that is used for storing fonts, label formats, and graphics for fast recall and printing.
International Language Printing Capability (ILPC) Fonts
The International Language Print Capability consists of one of the following:
• CG-Times (western European) Scalable font
• Kanji Gothic B Scalable font
• Simplified Chinese GB Scalable font
• English-CG Times
• China-Simplified Chinese
External Large Roll Holder
The External Media Supply Stand allows the printer to use large media supply rolls, up to 8-inches in diameter and wound on 1” to 3” cores. The external stand allows for longer operational time before reloading labels or tags.
External Battery Pack
An external battery pack accessory is available to power the printer in areas where an AC receptacle is not available such as warehouses, shipping docks, vehicles, or mobile print stations. The battery pack accessory will allow the printer to operate up to 10 hours on a single charge.
The external rewinder is used for rewinding labels onto a roll as they are printed. The rewinder is a standalone unit and is not controlled by the printer in any way. The rewinder is ideally used in applications where a large batch of labels are needed in another location. Rewinders are commonly used for serialized labels.Datamax E-4205e E-Class Mark III Desktop Printer Specifications
Direct Thermal, Optional Thermal Transfer
BAR CODE MODULUS
5 mil to 55 mil (203 dpi) / 3.3 mil to 40 mil (300 dpi) "X" dimension in picket fence or ladder orientations
1" – 4.3" (25.4mm – 109.2mm)
Roll-fed or fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock
.375" – 24" (9.5mm – 609.6mm)
.0025" – .0100" (.0635mm – .254mm)
"See through" for liner backed die cut labels and tags. Left bias reflective sensor for black mark label media
For use with optional cutter
Industry standard ribbon widths; 0.5" (13mm) ribbon core, 361’ (110M) in length
Plastic construction, clear top window to easily monitor media supply levels
Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Code 93, Postnet,
UCC/EAN Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417
Ten alphanumeric fonts from .08" (2mm) to .25" (6mm) including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®.
DOWNLOADABLE FONT TYPES
True-Type, AGFA® Intellifont™, Bitmap
CHARACTER SET Modified IBM® Code Page 850;
includes characters for English and most European, Scandinavian and Spanish speaking countries. Scalable fonts can be
used with over 50 resident character sets.
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
.PCX, .BMP and .IMG files
REVERSE FIELDS/MIRROR IMAGE
Any font or graphic field can be printed as a normal or reverse image
2MB DRAM; 1MB Flash
USB, Centronics® Parallel port, RS232 at 600 to 38,400 BPS
Used for creating label formats using virtually any Windows®-based program. Included on Datamax Accessories CD, or via our web site at www. datamaxcorp. com
External power supply; specify appropriate power supply and cord when ordering
40°F to 95°F (4°C to 35°C)
7.05” H x 8.77” W x 10” D (179mm H x 223mm W x 254mm D)
5.2 lbs. (2.4kg)
SUPPLY ROLL CAPACITY
4” (101.6 mm)
Industry Leading...3 YearsHoneywell Datamax O'Neil E-4205e E-Class Mark III Printer Data Sheet(.pdf 991KB)
