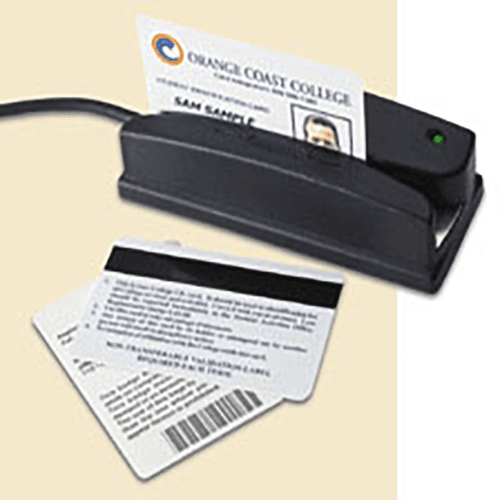

  Id Tech Omni Bar Code/Magnetic Stripe Heavy-Duty Card Reader (Interfaces: Keyboard Wedge, RS232, USB/Keyboard, USB/RS232, Decoded Clock & Data (TTL), & Wiegand Interface; Visible Red, Infrared Barcode; MSR Tracks 1, 2, and 3; Sealed/Weatherized; Combo) Heavy-duty Id Tech Omni swipe reader reads barcode and/or magnetic stripe media. Its die-cast metal base and one-piece heavy plastic housing make it ideal for rugged environments.
Id Tech's Omni Bar Code/Magnetic Stripe Swipe Reader's scan bar codes printed on paper, card stock, or plastic. An infrared option is available for security-based applications, where bar codes are overprinted to prevent duplication.
Id Tech's Omni gives you the ability to read both magnetic stripe and/or barcode media in a single slot! Designed into a rugged and weather resistant single piece housing, the Omni provides magnetic stripe reading ability of up to three tracks of magnetic data and visible or infrared barcode scanning for the most demanding applications. It signifies successful reads with a beeper and LED and has proven reliability beyond 1,000,000 passes. Data output can be formatted into needed format.
Stands up to heavy use.
The Id Tech Omni Reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
ID Tech Omni Bar Code/Magnetic Card Reader Features & Benefits
Reads both magnetic and barcode media
Reliable for over 1,000,000 card swipes
Superior reading of high jitter, scratched, and worn MagStripe cards
Metal base can be securely mounted with cable exits from side, end, or bottom using a metric mounting screw (screw size is M3.5) available at any hardware store.
Weatherproof, sealed or extended temperature versions are available
Dual sided MagStripe head versions option
Red or infrared bar code reader option
JPOS & OPOS drivers are available
General Information:
Size: 5.00 x 2.05 x 1.38 inches (L X W X H)
Color: black
Swipe speeds from 3 to 60 IPS
Interfaces: Keyboard wedge, RS232, USB/Keyboard, USB/RS232, decoded Clock & Data (TTL), & Wiegand Interface.
 RoHS Compliant
|
WCR32xx Series Omni Heavy-Duty Slot Reader Specifications
|
|
|
Bar Code:
|
Power +5 VDC +/-10% (35mA maximum). Ground 0 VDC (GND).
|
|
Magnetic:
|
Power +5 VDC +/-10% (50mV ripple maximum). Ground 0 VDC (GND).
Chassis Ground connected to GND and magnetic head case.
|
|
Operating Current:
|
35mA maximum for undecoded bar code only.
0.8mA per track typical when reading an undecoded magnetic stripe(3 tracks). 70mA additional for decoded with keyboard or RS-232 interface.
|
|
|
|
Operating Temperature:
|
32°F to 131°F (0°C to 55°C ) - USB Versions Only
|
|
Weatherproof/Extended Temperature Option:
|
-31°F to 140°F (-35°C to 60°C ) without ice build-up on magnetic head.* - Keyboard Wedge and RS232 Versions Only.
*Minimum quantities apply; extended temperature option not available with bar code feature.
|
|
Storage Temperature:
|
-31°F to 158°F (-35°C to 70°C ) non-condensing.
|
|
Humidity:
|
Maximum 95% non-condensing.
|
|
|
|
Electronics MTBF:
|
Read electronics, bar code: 30,000 POH. Read electronics, magnetic: 125,000 POH.
Interface electronics, RS-232/keyboard: 125,000 POH.
|
|
Magnetic Head Life:
|
1,000,000 passes minimum.
|
|
Rail and Cover Life:
|
1,000,000 passes minimum.
|
|
Magnetic Read Rate:
|
Less than one error in 100,000 bits on cards conforming to ISO 7811 1-5 (not induced by operator error).
|
|
Warranty:
|
One year, parts and labor.
|
|
|
|
Bar Code Source Light:
|
Visible red 660nm or Infrared 930nm.
|
|
Minimum Bar Code PCS:
|
60%.
|
|
Bar Code Centerline:
|
.49 inches (12.50mm) from bottom of slot to center of reading window.
|
|
Bar Code Resolution:
|
.006 inches (6mil) minimum.
|
|
Magnetic Stripe Formats:
|
ISO 7811, AAMVA, and CA DMV.
|
|
Swipe Speed:
|
Bar Code: 5 to 65 inches per second, bi-directional.**
Magnetic Stripe: 3 to 55 inches per second, bi-directional (normal density).
**Media velocity can vary depending on bar code density and quality.
|
|
Media Thickness:
|
Bar Code media: .005 to .055 inches.
Magnetic Stripe media: .01 to .055 inches.
|
|
Slot Width:
|
.055 (1.37mm).
|
|
Symbologies Supported:
|
Code 39
Interleaved 2 of 5
Industrial 2 of 5
FEBRABAN
Code 128
Codabar
MSI/Plessey
UPC-A
UPC-E
UPC-E Expansion
EAN-13
EAN-8
|
|
Interfaces:
|
RS-232/keyboard wedge (AT/XT, PS2, Mac, and many others) TTL (undecoded magnetics and/or Bar Code), Standard SIA 26-bit Wiegand, USB/keyboard.
|
|
Dimensions:
|
Length: 5 inches (127mm). Width: 2.05 inches (52mm). Height: 1.38 inches (35mm).
|
|
Weight:
|
1.4 lb. (including power pack).
|
|
Cable Length:
|
6-foot straight cable.
|
|
Connector:
|
Keyboard: Combination 5 pin/6 pin DIN. TTL: 9 pin squeeze. RS-232: DB9F. TTL Mag/BC
Combo Readers: unterminated cable.
|
ID Tech Omni Barcode & MagStripe Reader Installation Instructions (.pdf 575KB)>
ID Tech's Wiegand Readers Addendum (.pdf 50KB)
*Order Online Id Tech's Omni Barcode Slot Reader (P/N WCR3237-600S) featuring a Barcode Slot Reader with Keyboard Wedge Interface, Wedge Cable, Visible Red, Sealed. Color: Black
|
|  | | Id Tech Omni Bar Code Slot Readers - (Visible Red, Infrared; Weatherized/Non weatherized; USB, RS232, Wiegand Reader Interfaces)
| | |  | | Id Tech WCR3207-700S Omni Heavy Duty Slot Reader (Weatherized, Bar Code Reader, TTL, Infrared) - Color: Black
| | |  | | Id Tech WCR3227-600S Omni Heavy Duty RS232 Barcode Slot Reader (Visible Red, Sealed, RS232 Interface/9 pin squeeze cable, Power Supply). Color: Black.

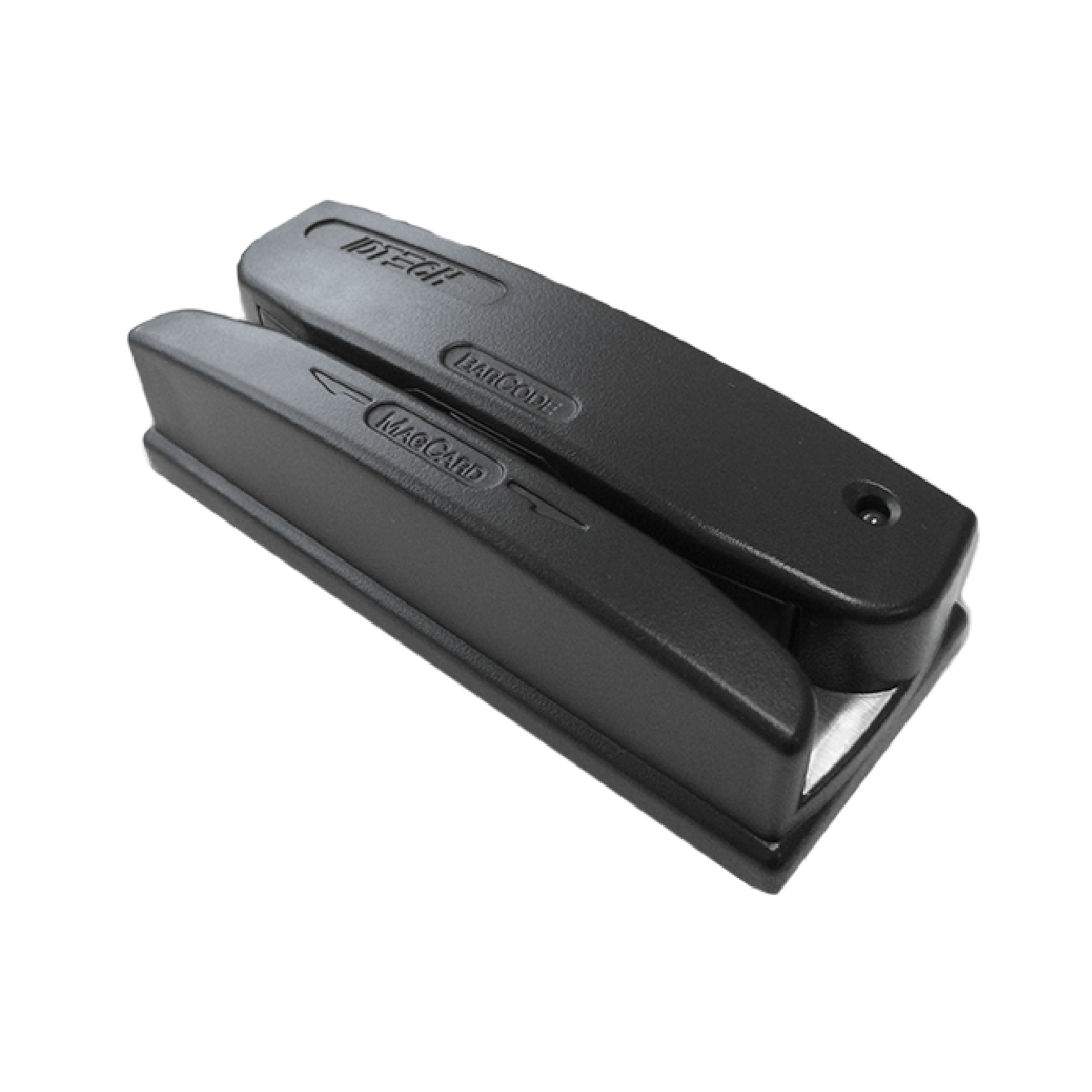

| | |  | | Id Tech WCR3227-700S Omni Heavy Duty Slot Reader (RS-232 Interface, Infrared Barcode)
| | |  | | Id Tech WCR3227-700US Omni Heavy Duty Slot Reader (Infrared Barcode, USB, No 0/S Needed, Sealed)
| | |  | | Id Tech WCR3237-600US Omni Heavy Duty Barcode Slot Reader (USB/Keyboard Emulation Interface, Visible Red, Sealed). Color: Black. Bar Code Only.
| | |  | | Id Tech WCR3237-700US Omni Heavy Duty Bar Code Slot Reader (USB/Keyboard Emulation Interface, Infrared, Sealed). Color: Black. Bar Code Only.
| | |  | | Id Tech WCR3297-600 Omni Heavy Duty Slot Reader (Wiegand Interface, Visible Red, Not Weatherized) - Color: Black
| | |  | | Id Tech WCR3297-600C Omni Heavy Duty Bar Code Slot Reader (Wiegand Interface, Visible Red, and Weatherized). Color: Black
| | |  | | Id Tech WCR3297-612C Omni Slot Reader, Wiegand Interface, Visible Red, Dual Bar Code/ Mag Stripe Reader (Tracks 1&2), Weatherized. Color: Black
| | |  | | Id Tech WCR3297-700 Omni Bar Code Slot Reader, Wiegand Interface, Infrared, Color: Black
| | |  | | Id Tech Omni Magnetic Stripe Card Reader Only
| | |  | | Id Tech WCR3207-533 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with 3 Track, TTL Interface, Bi-Directional)
| | |  | | Id Tech WCR3237-512U Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2 and USB Interface). Color: Black
| | |  | | Id Tech WCR3237-533U Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1, 2 and 3, USB Interface and Cable) - Color: Black
| | |  | | Id Tech WCR3237-512K512UC Omni Dual Head Tracks 1 and 2, USB Keyboard Emulation, Weatherized.
| | |  | | Id Tech WCR3237-533UC Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1, 2 and 3, USB Interface, Weatherized) - Color: Black
| | |  | | Id Tech WCR3237-512 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2, Keyboard Wedge Interface and Cable) - Color: Black
| | |  | | Id Tech WCR3237-533 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1, 2 and 3, Keyboard Wedge Interface and Cable) - Color: Black
| | |  | | Id Tech WCR3227-512 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2, Serial Interface and Power Supply) - Color: Black
| | |  | | Id Tech WCR3227-512C Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2, Weatherized and RS232 Interface). Color: Black
| | |  | | Id Tech WCR3227-533C Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1, 2 and 3, RS232 Interface and Weatherized). Color: Black
| | |  | | Id Tech WCR3237-512UC Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2 with USB and Keyboard Wedge Emulation - Weatherized)
| | |  | | Id Tech WCR3297-512 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader Only with Tracks 1 and 2 and Wiegand Interface). Color: Black
| | |  | | Id Tech Omni Combo Readers Bar Code and Magnetic Stripe Card Readers
| | |  | | Id Tech WCR3237-612U Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1 and 2, Barcode Reader with Visible Red and USB Interface). Color: Black
| | |  | | Id Tech WCR3237-633U Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1, 2 and 3, Barcode Reader with Visible Red and USB Interface). Color: Black
| | |  | | Id Tech WCR3237-733U Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1, 2 and 3, Barcode Reader with Infrared, USB Interface) - Color: Black
| | |  | | Id Tech WCR3237-612 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1 and 2, Barcode Reader with Visible Red, Keyboard Wedge Interface with AT and PS2 Cables) - Color: Black
| | |  | | Id Tech WCR3237-733UC Omni Heavy Duty Slot Reader (Combo Bar Code-Mag Reader, USB Interface, Infrared with Tracks 1, 2 and 3 and Weatherized) - Color: Black
| | |  | | Id Tech WCR3237-633 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1, 2 and 3, Barcode Reader with Visible Red and Keyboard Wedge Interface) - Color: Black
| | |  | | Id Tech WCR3237-733 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1, 2 and 3, Barcode Reader with Infrared, Keyboard Wedge Interface with AT and PS2 Cables) - Color: Black
| | |  | | Id Tech WCR3227-612 Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1 and 2, Barcode Reader with Visible Red and RS232 Interface) - Color: Black
| | |  | | Id Tech WCR3227-612C Omni Heavy Duty Slot Reader (Magnetic Stripe Reader with Tracks 1 and 2, Barcode Reader with Visible Red, Weatherized, RS232 I/F, DB9F Cable, Power Supply, Programming Features). Color: Black.
| | |  | | Id Tech WCR3227-633 Omni Heavy Duty Slot Reader (Magnectic Stripe Reader with Tracks 1, 2 and 3, Barcode Reader with Visible Red, RS232 Interface, Power Supply and Cable) - Color: Black
| | |  | | Id Tech WCR3227-633C Omni Combo 3 Track Magnectic Stripe Reader and Barcode Reader with Visible Red, RS232 Interface, Decoded, Weatherized. Color: Black.
| | |  | | Omni Heavy Duty Slot Reader (Visible Red, 3-Track, USB - RS232 Emulation)
| | |  | | Id Tech WCR3227-633UC Omni Combo 3 Track Magnectic Stripe/Barcode Reader, Visible Red, USB, RS232 Emulation, Decoded and Weatherized)
| | |  | | ID Tech Omni Reader Accessories
| | |  | | Id Tech IDT1221U Serial RS232-USB Adapter Cable
| | |  | | Id Tech AC0005-3 Omni, VersaMAG and SecurePIN MSR 5 Volt Power Supply (RS232)
| | |  | | ID Tech Omni Heavy Duty Slot Reader (USB)
| | |  | | ID Tech Omni Heavy Duty Slot Reader (RS-232)
| |
|
|
Contact us by phone or eMail with any question's you may have
