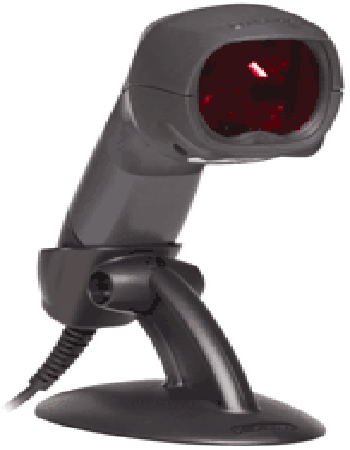

 Honeywell Metrologic MK3780 Fusion Hand Held Fixed Position Omni Directional Laser Scanner
Honeywell Metrologic MK3780 Fusion
BarCodeScannersDiscount Promo!
***All Configurations*** |
The Honeywell Metrologic MK3780 Fusion is an affordable hand-held omnidirectional laser scanner with single-line
capability that increases retail checkout
system efficiency with its automatic in-stand
operation, optionally integrated EAS, and
industry-leading scan performance.
Honeywell Metrologic MK3780 Fusion combines omnidirectional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor.
The 20-line scan pattern provides superior
scanning over existing single-line hand-held
scanners making Fusion ideal for medium-volume
retailers including specialty stores, pharmacies,
liquor stores, and convenience stores.
An adjustable stand with 50° of tilt and three
locking positions provides flexibility for the user
to position the scanner for individual comfort and
optimal performance. Stabilized with a weighted
metal base, the stand may also be hard-mounted
to counters or walls.
Honeywell Metrologic MK3780 Fusion also includes CodeGate®, a Metrologic patented feature used in the highly successful
Voyager® Series. An integrated infra-red (IR) sensor
automatically activates the laser when a bar code
is present. The user then properly aligns the bar
code before pressing the button, transmitting the
data to the host. This feature provides the ability
to pass over other bar codes, selecting only
the required code. No other scanner offers this
much control.
Standard features such as Flash ROM,
MetroSelect® and MetroSet2® programming, and
user replaceable cables protect your investment
by enabling Fusion to grow with you and your
application requirements.
FS USB is power plus USB for IBM SurePOS or NCR terminals.
LS USB is low speed USB for IBM PC/Clones.
Honeywell Metrologic MK3780 Fusion Features & Benefits
Primary omnidirectional scan pattern - providing an aggressive scanning of bar codes in any orientation, increasing throughput
Decoding Capability - decodes all 1D, RSS-14, RSS Limited, and RSS Expanded bar codes
Compatibility - OPOS and JPOS system compatible
Secondary single-line scan pattern - with the push of a button, switch to a targeted single-line for menu scanning
Automatic stand detection - hands-free operation for presentation scanning, reducing operator fatigue
Sleep mode with IR wake up - multiple sleep modes reducing power consumption, extending life and lowering cost of operation
Optional EAS integration - deactivate an EAS tag and decode a bar code in a single scan
Factory Warranty - 3 Year Factory Warranty
Application Integration - ideal for Health Care, Retail, and Convenience Store Applications.
 RoHS Compliant
Honeywell Metrologic MK3780 Fusion Omni-Directional Scanner Data Sheet (.pdf 242KB)
Honeywell Metrologic MK3780 Fusion Scanner Installation Instuctions - User Guide(.pdf 6.7MB)
| spec |
Honeywell Metrologic MK3780 Fusion Hand Held/Fixed Position Omni Directional Bar Code Scanner Quick Specs |
|---|
| description |
|---|
| Depth of Scan Field
| 25 mm - 279 mm (1” - 11”) for 0.33 mm (13 mil) bar code at default setting |
| Width of Scan Field
| 30 mm (1.2”) @ 25 mm (1"); 150 mm (5.9”) @ 280 mm (11”) |
| Scan Speed
| 1333 scan lines / sec, omnidirectional; 67 scan lines / sec, single line |
| Scan Pattern
| 5 fields of 4 parallel lines, omnidirectional; or button activated single line |
| Minimum Bar Width
| 0.127 mm (5 mil) |
| Dimensions
| 189 mm x 65 mm x 73 mm (2.60” x 2.65” x 4.25”) LxWxH
|
| System Interfaces
| RS232, Keyboard Wedge, Stand Alone Keyboard, IBM 468x/469X, USB (low speed and full speed), OCIA |
| Light Source
| Visible Laser Diode 650 nm |
| Weight
| 180 g (6.3 oz) |
| Indicators | Blue = laser on, ready to scan; White = good read |
| Warranty
| Three Year Factory Warranty. |
FS USB is power plus USB for IBM SurePOS or NCR terminals.
LS USB is low speed USB for IBM PC/Clones.
*Order Online the Honeywell Metrologic MK3780 Fusion USB Kit (P/N MK3780-61A38). Featuring USB Kit: dark gray scanner (MS3780-38), stand (46-00225), coiled low speed USB direct
Ruby cable (53-53235-N-3) and documentation.
|
|  | | Honeywell Metrologic MK3780-71A38 Fusion Hand-Held Omnidirectional Laser Scanner USB Kit: light gray scanner (MS3780-38-7), stand (46-00225-3), coiled low speed USB direct Ruby cable (53-53235-N-3) and documentation
| | |  | | Honeywell Metrologic MK3780-61B41 Fusion Hand-Held Omnidirectional Laser Scanner RS232 Kit: dark gray scanner (MS3780-41), stand (46-00225), US power supply (46-00525), coiled RS232 PowerLink cable (53-53000-3) and documentation.
| | |  | | Honeywell Metrologic MK3780-71B41 Fusion Hand-Held Omnidirectional Laser Scanner RS232 Kit: light gray scanner (MS3780-41-7), stand (46-00225), US power supply (46-00525), coiled RS232 PowerLink cable (53-53000-3) and documentation.
| | |  | | Honeywell Metrologic MK3780-61B41-545 Fusion Hand-Held Omnidirectional Laser Scanner Gilbarco G-Site, Stand and Cable Part# 53-53545A-3 (PowerLink Coiled Cable, RS232, Gilbarco G Site Register, DB9, Black). Color: Dark Gray.
| | |  | | Honeywell Metrologic MK3780-61B41-134 Fusion Gilbarco G-Site w/ RJ Port Cable & Power Supply Kit (Hand-Held Omnidirectional Laser Scanner, Gilbarco, 110V Power Supply, and RJ Cable (P/N 53-53134A3)) - Color: Dark Gray.
| | |  | | Honeywell Metrologic MK3780-31A62 Fusion Hand-Held Omnidirectional Laser Scanner Ruby Verifone Kit: dark gray scanner (MS3780-62-3), stand (46-00225), 1.8m coiled Veri-Ruby 10 pin RJ45 male cable (MVC-3MPC-VR) and documentation
| | |  | | Honeywell Metrologic MK3780-61B47 Fusion Keyboard Wedge Kit. KBW Kit includes: dark gray scanner (MS3780-47), stand (46-00225), US power supply (46-00525), coiled KBW Powerlink Ruby cable (53-53002-3) and documentation.
| | |  | | Honeywell Metrologic 59-59235-N-3 Cable: USB, black, Type A, 2.9m (9.5'), straight, host power. For use with the MK7120 Orbit, MK3580 Quantum , MK9520 Voyager, and MK9540 Voyager, MK3780 Fusion. Works with any powerlink scanner.
| | |  | | Honeywell Metrologic 53-53000F-3 9-pin D-Sub RS232/Light Pen Cable (Female RS-232 Serial, Black) . For use with the MK3780, MK7120, MK9520 and MK9540. Requires Power Supply, p/n 46-00525
| | |  | | Honeywell Metrologic 53-53134A-3 RS-232 Serial Powerlink Cable to Gilbarco G Site RJ Port (Coiled, For the MS3780/MS9500 Series).
| | |  | | Metrologic 53-53545A PowerLink Coiled RS232 DB9 Cable to Gilbarco G-Site(for the MS3780/MS9500 Series)
| | |  | | Metrologic 53-53545A-3 PowerLink Coiled Cable (RS232, Gilbarco G Site Register, Black). For the MS3780/MS9500 Scanners.
| | | | | Honeywell Metrologic 53-53134A-3 RS-232 Serial Powerlink Cable to Gilbarco G Site RJ Port (Coiled, For the MS3780/MS9500 Series).
| | |  | | Honeywell Metrologic 46-00525 Xenon/MS9520/MS9540/MS9590/MS3780/MS7120/MS5145/MS1690 AC to DC PowerLink Power Supply (NA plug, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz)
| | |  | | Honeywell 53-53000-3 Sharp UP600 Direct Connect Cable. (9-pin DB-9 Female RS-232 Serial Interface). Coiled Cable. It will work with any of the RS232 scanners with the detachable “Powerlink” cables. For use with the Voyager 9520/9540/, Eclipse, MS3780 Fusion, 7120 Orbit, and Quantum.
| |
|
Contact us by phone or eMail with any question's you may have
