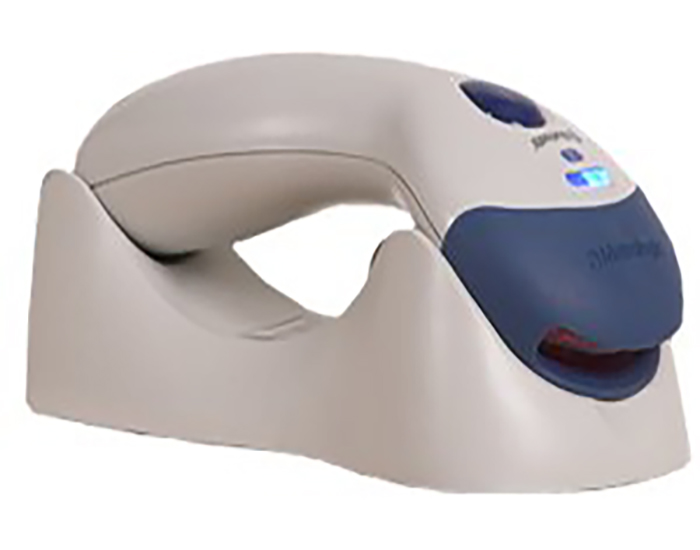

  Honeywell Metrologic MK9535 VoyagerBT Wireless Laser Bar Code Scanner Kits with Bluetooth!
Honeywell Metrologic's MK9535 VoyagerBT offers the convenience and freedom of mobility by incorporating
Bluetooth Wireless Technology. This latest
member of the Voyager Series continues the trend
of combining patented technology, high performance,
and a futuristic design.
VoyagerBT provides a lightweight, comfortable,
and easy to use scanning solution. The patented
CodeGate feature remains at the core of the scanner's
functionality. The scanner wakes automatically
when the integrated IR sensor is activated.
To scan a bar code, simply align the laser scan
line and press the CodeGate button. The data is
transmitted wirelessly to the host. Operators will
find the brightly-lit laser easy to see and to line
up on a desired bar code making VoyagerBT perfect
for menu scanning applications.
Scanning large or heavy products can be done
quickly and easily. VoyagerBT offers check-out personnel
the ability to scan bulky items without the
need for unnecessary heavy lifting.
VoyagerBT includes the ability to decode Reduced
Space Symbology (RSS) bar codes. VoyagerBT
can be used in applications including supermarkets,
hypermarkets, warehouse shopping clubs,
retailers, light warehouse and manufacturing.
Metrologic MK9535 VoyagerBT Wireless Bar Code Scanner Overview
Bluetooth® Technology - Bluetooth outlines a specification (within a 33 feet range), enabling a diverse range of devices to communicate.
Two-way communication - User receives audible and visual confirmation of each scan.
Wall-Mountable Cradle - Conserves valuable counter space.
CodeGate® data transmission - Ideal for menu scanning applications and when combined with the Auto-Trigger, VoyagerBT™ is the most intuitive bar code scanning system in the industry.
RangeGate® - Scans 8KB of bar codes while out of range and then communicates with the host once connectivity is re-established. RangeGate® enables both models to scan hundreds of bar codes when out of range of a host system (VoyagerBT™ – 250, VoyagerBT™-5M – 2400 bar codes). *For this feature look for configurations with additional Onboard Memory.
Metrologic MK9535 VoyagerBT Wireless Bar Code Scanner Features & Benefits
10 meter (33 feet) working range
Cable-free scanning using Bluetooth® technology
CodeGate® data transmission technology ideal for menu scanning
Depth of Field: 0 mm - 203 mm (0” - 8.0”) for 0.33 mm (13 mil) bar codes
Shock: Designed to withstand 1.5 m (5') drops
System Interfaces: PC Keyboard Wedge, RS232, Light Pen Emulation, Stand Alone Keyboard, IBM 468x/469x, USB (low speed and full speed)
Up to 12,000 scans per charge
Adjustable volume and beeper tone
Stylish recharging station, wall or countertop mounting with in stand scanning
Recharging base station with in - base scanning
Two way communication - user receives audible
and visual confirmation of each scan
Scanner locator button on cradle
Supports commonly used interfaces including KBW/USB/RS232
Stock Colors available in White or Black
Warranty: 2 Year Factory Warranty
FS USB is power plus USB for IBM SurePOS or NCR terminals.
LS USB is low speed USB for IBM PC/Clones.
RoHS Compliant
Metrologic MK9535 VoyagerBT Data Sheet (.pdf 298KB)
Metrologic MK9535 VoyagerBT Installation Instructions (.pdf 858KB)
*Order Online the Metrologic
MK9535 VoyagerBT Keyboard Wedge Kit (P/N MK9535-79B547) featuring the MS9535 VoyagerBT Handheld Scanner Keyboard Wedge Kit with Power Supply, Footprint Stand, Cable and Cradle. Color: White.
|
 |  |  | Metrologic MS9535 VoyagerBT Cordless Scanner - USB Kits

|  |  |  |  | Metrologic MK9535-79B538 MS9535 VoyagerBT USB HID Keyboard Wedge Kit with Power Supply, Stand, Cable & Cradle. Color: White. Low Speed USB. For use with PC/Mac.

|  |  |  |  | Metrologic MK9535-39B538 MS9535 VoyagerBT USB HID Keyboard Wedge Kit with Power Supply, Stand, Cable & Cradle. Color: Black. Low Speed USB. For use with PC/Mac.

|  |  |  |  | Metrologic MK9535-79B540 MS9535 VoyagerBT Handheld Scanner (FS USB-IBM, Power Supply, Cable, Cradle and Manual) - Color: White. FS USB = Full Speed USB (power plus USB for IBM SurePOS or NCR terminals).

|  |  |  |  | Metrologic MK9535-39B540 MS9535 VoyagerBT Handheld Scanner (FS USB-IBM, Power Supply, Cable, Cradle and Manual) - Color: Black. FS USB = Full Speed USB (power plus USB for IBM SurePOS or NCR terminals).

|  |  |  |  | Metrologic MK9535-79B5M38 MS9535 VoyagerBT Handheld Scanner (USB Interface with Memory, Cable, Cradle and Manual) . Color: White.

|  |  |  |  | Metrologic MK9535-39B5M38 MS9535 VoyagerBT Handheld Scanner (USB with Memory, Cradle and Manual) - Color: Black

|  |  |  |  | Metrologic MS9535 VoyagerBT Cordless Scanner - RS232 Serial Kits

|  |  |  |  | Metrologic MK9535-79B514 MS9535 VoyagerBT RS232 Kit with Cable, 110V Power Supply, Footprint Stand and Cradle. Color: White.

|  |  |  |  | Metrologic MK9535-39B514 MS9535 VoyagerBT RS232 Kit with Cable, 110V Power Supply, Footprint Stand and Cradle. Color: Black.

|  |  |  |  | Metrologic MS9535 VoyagerBT Cordless Scanner - Keyboard Wedge Kits

|  |  |  |  | Metrologic MK9535-39B547 MS9535 VoyagerBT Keyboard Wedge Kit with Power Supply, Footprint Stand, Cable and Cradle. Color: Black.

|  |  |  |  | Honeywell Metrologic 46-46935-3 Flex Pole Kit, Color: Black. For use with the MS9535 VoyagerBT.

|  |  |  |  | Honeywell Metrologic 46-46772B MS9535 VoyagerBT Charger (Cradle Only, White).

|  |  |  |  | Honeywell Metrologic 46-46772G-3 MS9535 VoyagerBT Charger (Cradle Only, Black)

|  |  |  |  | Honeywell Metrologic 52-52828A-3 USB Powerlink Cable (Color: Black). For use with Eclipse (5145), Focus (1690), Orbit (7120, 7180), Fusion (3780), ArgusScan (7220) (ext. power required always), InVista (7320), Horizon (7600), Cubit (MS6520), Voyager (95x0).

|  |  |  |  | Honeywell Metrologic 54-54002B-N-3 PS/2 Keyboard Wedge Cable w/out Power Jack (7 Foot, Straight Cable, Keyboard Wedge, Black). For use with the 9520, 9540, 9535, and 7120. Color: Black.

|  |  |  |  | Honeywell 53-53002-3 Voyager 9520, 9540, 9535 Keyboard Wedge PS2 PowerLink Coiled Cable (2.9M, 9.5 feet, color: black, 5V External Power).

|  |  |  |  | Honeywell Metrologic 46-46878 MS9535 VoyagerBT AC Power Adapter 110V Power Supply.

|  |  |  |  | Honeywell Metrologic 46-46870 MS9535 VoyagerBT Lithium Ion (Li-Ion) Battery

|  |
|
