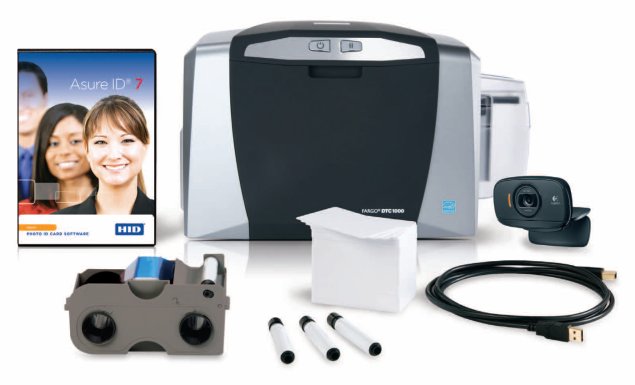

Fargo 047600 DTC1000 Photo ID System Bundle. Bundle incldues: Asure ID Solo Id Card Software with a 1 Year Protection Plan, Logitech USB Digital Camera, Full Color Ribbon Cartridge, 1 x Pack of Three Card Cleaning Roller, 100 x UltraCard PVC Cards, and USB Cable. 2 Year Warranty.
Product Description
Designed for small to medium businesses, the DTC1000 provides maximum efficiency in a sleek user-friendly design. This printer is virtually maintenance-free and prints fullcolor
plastic ID and technology cards on a
budget.
The Fargo DTC1000 adds a level of convenience to easily print what you need, including:
Easy, all-in-one print ribbon and card
cleaning cartridge simplifies the ribbon
loading process.
Built-in Swift ID™ badging application
enables you to create ID badges in
seconds without having to install any
additional software.
Edge-to-edge printing in full-color or
simple black and white.
Economical half-panel ribbons
personalize pre-printed cards with a
photo and bar code.
Intuitive design provides instant system
status through color-changing buttons.
Industry’s first inline card printing and
technology card encoding with one
connection using USB or optional Ethernet connectivity.
The FARGO® DTC1000 is built with Genuine HID™ technology and is fully interoperable with other products in the HID ecosystem, enabling organizations to leverage their existing HID technology investments.
Take advantage of the built-in and
optional features that suit your business:
Gain more space for company or
cardholder information with dualsided
printing module.
Enable distributed card issuance in
seconds with an optional internal
server for secure printing over a
network.
Migrate to contact and contactless
smart card technology (including
iCLASS®) or simple mag stripe and
prox with optional technology card
encoders.
Eco-friendly erase and rewrite feature
is ideal for temporary ID cards, such as
visitor badges.
Print on a variety of card thicknesses
to create simple loyalty cards as thin
as 9 mil or access control badges as
thick as 40 mil.
Fargo DTC1000 Id Card Printer Specifications:
Print Method:
Dye-Sublimation / Resin Thermal Transfer
Resolution:
300 dpi (11.8 dots/mm) continuous tone
Colors:
Up to 16.7 million / 256 shades per pixel
Print Ribbon Options:
Full-color with resin black and overlay panel, YMCKO*, 250 prints
Full-color half-panel with resin black and overlay panel, YMCKO*, 350 prints
Full-color with two resin black panels and overlay panel, YMCKOK*, 200 prints
Resin black and overlay panel, KO*, 500 prints
Dye-sublimation black and overlay panel, BO*, 500 prints
resin black (standard and premium), 1000 prints
Resin green, blue, red, white, silver and gold, 1000 prints
Rewrite technology - No ribbon is required
Print Speed**
7 seconds per card (K*); 12 seconds per card (KO*); 24 seconds per card (YMCKO*); 31 seconds per card (YMCKOK*)
Accepted Standard Card Sizes:
CR-80 (3.375½L x 2.125½W / 85.6mmL x 54mmW); CR-79 Adhesive Back (3.313½L x 2.063½W / 84.1 mm L x 52.4 mm W)
Print Area:
CR-80 edge-to-edge (3.36½L x 2.11½W / 85.3 mm L x 53.7 mm W); CR-79 (3.3½L x 2.04½W / 83.8 mm L x 51.8 mm W)
Accepted Card Thickness:
.009½ - .040½ / 9 mil - 40 mil / .229mm - 1.016mm
Accepted Card Types:
PVC or polyester cards with polished PVC finish; monochrome resin required for100% polyester cards; optical memory cards with PVC finish; rewrite
Input Hopper Card Capacity:
100 cards (.030½ / .762 mm)
Output Hopper Card Capacity:
Up to 30 cards (.030½ / .762 mm)
Card Cleaning:
Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
Memory:
32 MB RAM
Software Drivers:
Windows® XP / Vista™ (32 bit & 64 bit) / Server 2003 & 2008/ Windows® 7 / MAC OS X 10.5/10.6 / Linux***
Interface:
USB 2.0, optional Ethernet with internal print server
Operating Temperature:
65° to 80° F / 18° to 27° C
Humidity:
20–80% non-condensing
Dimensions:
Single-Sided Printer: 8.8½H x 13.7½W x 7.9½D / 224 mm H x 348 mm W x 201 mm D
Dual-Sided Printer: 9.8½H x 18.7½W x 9.2½D / 249 mm H x 475 mm W x 234 mm D
Weight:
Single-Sided: 7.5 lbs / 3.4 Kg; Dual-Sided: 10 lbs / 4.54 Kg
Agency Listings:
Safety: UL 60950-1, CSA C22.2 (60950-1), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Supply Voltage:
100-240Vac, 50-60Hz, 1.6 Amps max.
Supply Frequency:
50 Hz / 60 Hz
Warranty:
Printer – Two years; Printhead – Two years, unlimited pass with UltraCard™
Encoding Options:
125 kHz (HID Prox) reader; 13.56 MHz (iCLASS®, MIFARE®, ISO 14443 A/B, ISO 15693) read/write encoder; Contact Smart Card Encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3
Options:
Single Wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS® and contact smart card encoding); Dual-Sided Printing Module; Smart Card Encoding Modules(contact/contactless); Magnetic Stripe Encoding Module; Printer Cleaning Kit; Ethernet with Internal Print Server; Secure Proprietary Consumables System
Software:
Swift ID™ Embedded Badging Application, FARGO Workbench Diagnosis Utility
Display:
Color changing status buttons * Indicates the ribbon type and the number of ribbon panels printed where Y=Yellow, M=Magenta, C=Cyan, K=Resin Black, O=Overlay, B=Dye Sublimation Black. ** Print speed indicates an approximate print speed and is measured from the time a card drops into the output hopper to the time the next card drops into the output hopper. Print speeds do not include encoding time or the time needed for the PC to process the image. Process time is dependent on the size of the file, the CPU, amount of RAM and the amount of available resources at the time of the print. ***Linux versions: Ubuntu 8.04/9.04, Red Hat 5, Fedora 7/8/9/10/11, Open Suse 10.3, Debian 5.03/5.04, Mandiva one 2009
Fargo DTC1000 Id Card Printer Data Sheet (.pdf 842KB)
