UIC Payworld 8310-50KR MICR Check Reader CMC7 (Non IBM4683, No Aux, No Scanner Port, No MSR, Integrated USB-KB Port. Color: Black. RoHS. Scanner Only. *Order USB Cable and Programming Checks separately below.
Product Description

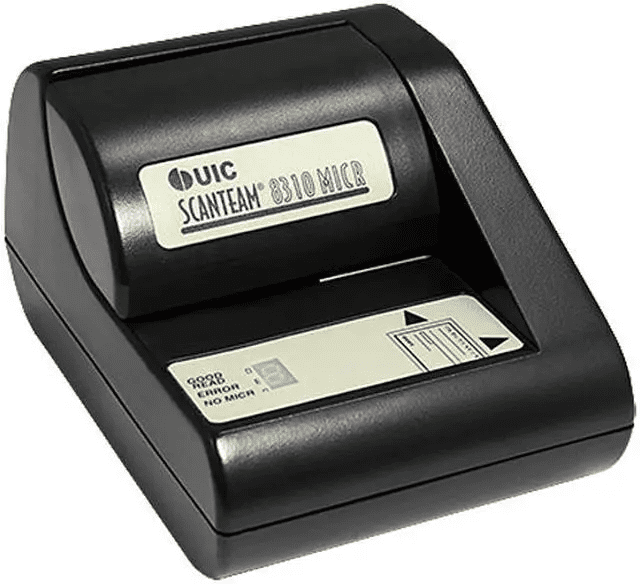

UIC Payworld ScanTeam 8310-5X Check Readers
The UIC Payworld SCANTEAM® 8310 is a reduced feature set member of the SCANTEAM 8300 family of check reader products. All ST8300 products contain FLASH memory, which allows for easy firmware upgrades in the field without the need to disassemble the product, and a magnetic read head for MICR data capture.
The SCANTEAMR 8310 contains communications support for traditional PC COM ports for PC-POS applications, many PC and video terminal keyboards in a keyboard wedge mode, as well as support for communications with many credit authorization terminals, including Hypercom TM , Data Card TM , Verifone Tranz TM , and ZON TM series products.
The SCANTEAMR 8310 was developed to specifically help retail and financial systems integrators become more flexible in their data capture capability. The ST8310 can adapt to a variety of applications, giving the integrator the ability to better control fraud, as well as further enhance customer service.
SCANTEAMR 8310 is a series of value-priced and industry standard check readers. Ideal for financial and retail applications, the check reader easily converts high volumes of paper checks into electronic information. An integrated magnetic stripe reader option is available to accommodate card swiping. Easy-to-install and reliable, the ST8300/ST8310 helps control check fraud and enhance customer satisfaction.
UIC Payworld SCANTEAMR 8310 Key Features
Financial and retail environments
Simple and easy-to-use
Converts checks to electronic transactions
Reliable and dependable
UIC Payworld Extensive Interfaces
To accommodate current and future point-of-sale and teller technologies, ST8300/ST8310 check readers offer flexible interface options including:
Traditional PC COM ports
Keyboard wedge
USB 1.1
Support for credit authorization terminals including
Hypercom®, Datacard®, and VeriFone® TRANZ® and ZON®
*Auxiliary ports are also available to connect other peripherals such as barcode scanners, magnetic stripe readers or small printers.
UIC Payworld Industry Design Standard
Minimal space is needed on the counter for the 8300/ST8310. It can be placed next to a PC or electronic cash register for ready access. In many environments, the ST8300/ST8310 can also be powered by the host device via USB, eliminating the need for an additional bulky power supply.
Flash memory allows for easy firmware upgrades in the field without the need to disassemble the check reader. A magnetic read head allows for accurate MICR data capture. Available in the colors of beige or black, the check reader complements existing hardware.
With the ST8300/ST8310, users can easily scan paper checks and achieve a successful first pass good read rate. In an environment where large volumes of checks are present, the ST8300/ST8310 can provide a quick return on investment.
In the Field Changes
The UIC Payworld ScanTeam 8310-5X Check Readers ST8300/ST8310 allows for easy and fast firmware modifications in the field downloaded through a point-of-sale or teller system. To accommodate emerging check technologies, the ST8300/ST8310 supports host download of all parameter and MICR exception table data.
Successful Read Rates
Designed for reliability, the ST8300/ST8310’s motorized paper transport handles checks easily and quickly. The check reader has above average industry standard success rates for first pass good reads. Deployed around the world, the ST8300/ST8310 successfully converts paper checks to electronic transactions for processing.
International Applications
The ST8300/ST8310 can be used worldwide for financial documents. With its auto-discrimination feature, the check reader can accurately read documents with E-13B or CMC-7 MICR fonts
UIC Payworld Check Readers ScanTeam 8300/8310 Features & Benefits
Check Reading Performance: Check Read/Decode/Transmit Time: 2 seconds with 99% first pass good rate, 99.9% second pass good read rate.
MICR Fonts: Supported E-13B and CMC-7, auto discrimination
Interface: OCIA, IBM®/Fujitsu® OCR, PC keyboard wedge, USB 1.1 HID, legacy IBM® and Wyse® POS, IBM® 4683/4693, RS-232
ST8300 Optional two (2) RS-232 auxiliary ports.
Data Formats
General Data Formatter: MSR, bar code and RS-232 data can be uniquely formatted before being sent to the host.
Data Editor: Output data can be edited to add or delete characters including prefix and suffix
MICR Data: User selectable table of common MICR data output formats
MICR Exception Table: Field programmable parsing rules for new checks
Options: Integrated dual or triple track magnetic stripe reader
Direct Connect Interfaces The ST8310 can communicate to a host device using bar code wand emulation, usb keyboard emmulation, or serial RS-232.
Outputs: ASCII data, RS232 serial, and keyboard wedge
Compatibility: With hundreds of PC, POS, and teller systems through keyboard wedge interface.
Enabled: No action is required to differentiate E-13B from CMC-7. Checks are automatically read as they are presented.
Factory Warranty: 2 Years.
Options:
Wall mount power packs, Host Interface cables,
ST8310 wall mount kit, MICR head cleaning checks,
MICR programming checks, and PC WindowsTM based programming utility, Quick*LoadTM
UIC Payworld ScanTeam 8310 Check Reader Data Sheet(.pdf 1.3MB)
UIC Payworld ScanTeam 8310 Technical Manual(.pdf 566KB)
UIC Payworld ScanTeam 8310 Programming Manual (.pdf 444KB)
UIC Payworld ScanTeam 8310-5X Check Readers Programming Menu(.pdf 318KB)
*Order Online the UIC Payworld 8310-50KR MICR Check Reader CMC7 (Non IBM4683, No Aux, No Scanner Port, No MSR, Integrated USB-KB Port. Color: Black. RoHS. Scanner Only. *Order USB Cable and Programming Checks separately below.
