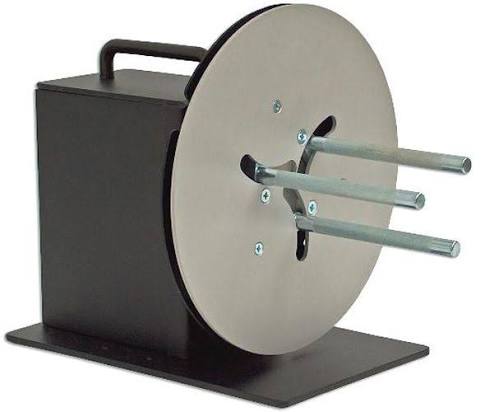

Honeywell Datamax O'Neil DMXREW1 DPO78-2394-01 Label Rewinder/ Unwinder. Supports up to 4.5" Label Width.
- is capable of rewinding or dispensing label rolls up to 4 inches wide, up to 8 inches in diameter at speeds up to 10 ips (inches per second). The DMXREW1 has a precision-crafted Adjustable Core Holder that adjusts in seconds to accept any core diameter from 1 inch to 4 inches (25 to 102mm). You can also do coreless rewinding with the DMXREW1.
The Honeywell DMXREW1 uses Constant Adjustable Torque technology to achieve impressive, reliable performance at an unprecedented low price. A special motor, designed specifically for the DMXREW1, offers bi-directional operation and trouble-free performance. A switch conveniently controls the amount of rewind force. No awkward tensioning arms, troublesome belts, or clutches are used and no speed adjustments are required. Your DMXREW1 automatically adjusts to any printer speed up to 10 ips and even automatically allows label back-feeding if your printer requires it.
The Honeywell DMXREW1 has an inner label flange to keep the edge of the label web aligned as the labels are being rewound.
Rugged steel construction allows your DMXREW1 to simply be set in place near your label printer. Special anti-slip feet prevent the unit from moving.Honeywell Datamax O'Neil DMXREW1 Specifications:
DESCRIPTION: REW1 for 1" to 4" cores (25 to 100 mm)
LABEL WIDTH: Up to 4.5-inches (113 mm). Maximum Label Roll Weight: 8.5 lbs. (3.9 kg)
ROLL DIAMETER: 8" (200mm)
MAX SPEED: 15 ips (380mm/sec.)
LABEL ROLL DIAMETER: Up to 8-inches (200 mm)
CORE DIAMETER: Use any cardboard core from 1- to 4-inches (25 to102mm) in diameter
SPEED: Up to 15 ips (380 mm/sec). Switch adjustable rewind force. No speed adjustments are required
START/STOP: Convenient ON-OFF switch
POWER REQUIREMENTS: 120vac 60Hz. UL / CSA or 220vac 50 Hz. CE Listed Power Supplies
DIMENSIONS: 9H x 6W x 11D" (229 x 152 x 279 mm).
Weight: 13 lbs. (5.9 kg)
WARRANTY: Limited 3-Year Parts and Labor Warranty. (One  Year Limited Warranty on included Power Supply Module
Honeywell Datamax External Rewinder DPO78-2394-01 Data Sheet (.pdf 414KB)
Honeywell Datamax O'Neil External Rewinders 4 inch and 10 inch (.pdf 764KB)
Note: For use with any printer capable of rewinding or dispensing label rolls up to 4 inches wide, up to 8 inches in diameter at speeds up to 10 ips (inches per second).
Order Online the Honeywell Datamax External Rewinder Up to 4.50 inch Label Width with 110V Power Supply. Includes power supply part# DPO50-2051-01.
