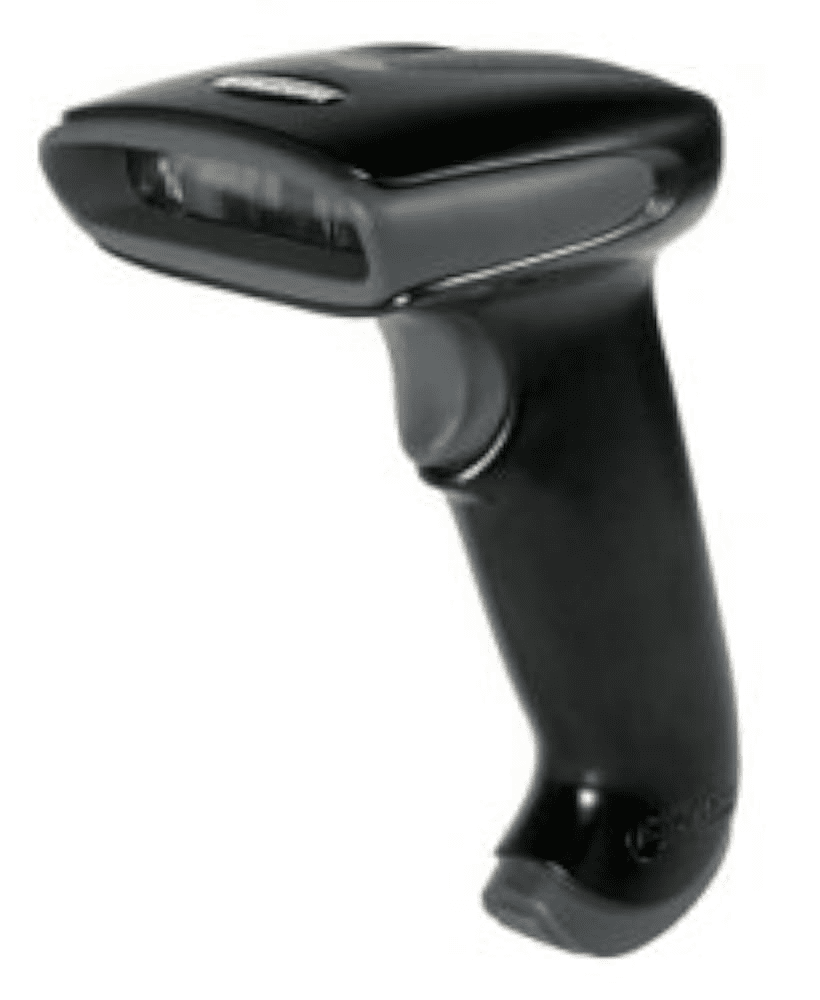

Honeywell 3800G14 USBKITE-BK USB Kit. Color: Black

Honeywell 3800G14-USBKITE Extended Range Linear Imager - USB Kit

The Honeywell 3800G14-USBKITE is excellent in handheld scanning applications, such as retail point of sale and in-store inventory. It operates from a tabletop holder in manual trigger mode, or may be placed in an adjustable stand for automated operation. The 3800g can be used indoors or outside in bright sunlight. Typical applications are retail point-of-sale, in-store inventory, document management, transaction processing of bar coded receipts, payment counter, and outdoor sales kiosks.

The first linear imager to earn the Adaptus™ Imaging Technology brand, the new 3800G14-USBKITE is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive bar code reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed bar codes - all in a single device.

Sound, ergonomic design and class-leading durability, coupled with aggressive reading performance, makes the new 3800G14-USBKITE the ideal choice for customers who appreciate best-in-class value in a handheld linear reader.

Honeywell 3800G14-USBKITE Linear Imager Advantage Premium Features

Performance and Versatility Powered by Adaptus Imaging Technology 5.0:

Excellent tolerance to lateral hand motion (4x faster) makes 3800g easy to use.

270 scans per second makes bar code reading faster than ever.

Improved depth of field across a broad range of linear bar codes.

Working range from .5 inches to 18 inches on 100% UPC/EAN symbols.

Improved ability to read damaged or poorly printed bar codes.

Honeywell 3800g General Purpose Reader Single device covering the broadest range of customer applications. Modern, Ergonomic Design: Sleek, modern industrial design results in a smaller, lighter device for increased operator comfort and productivity.

Durable: Built to last with no moving parts to wear out. Full impact resistant bumpers and a 5 year warranty make the 3800G14-USBKITE one of the toughest scanners on the market.

Standard Features Connectivity: All popular interfaces are on board. Includes Visual Express™ software for ease-ofintegration. Supports Unifi ed POS standard and Windows® Embedded for Point of Service, for retail connectivity.

Common Cabling: Uses same cable solutions as our linear, 2D, and Cordless imagers – for easy ordering and effi cient spares pools.

Future Proof Symbology Support: GTIN compliant, RSS capable.

Intuitive Aiming Line: Thin, crisp aiming line for ease-of-use in scanning bar coded menus and densely populated documents.

Full Line Accessories: Includes presentation scanning, global power choice options, and purpose built mounting solutions.

Intuitive User Feedback: Fully programmable options for application-specific “good read” LED and beeper settings.

Suggested applications include: school library bar code scanner, school cafeteria bar code scanner, point of sale bar code scanner, manufacturing bar code scanner, document tracking bar code scanner, and shipping/receiving bar code scanner

Honeywell 3800G14-USBKITE Linear Imager Specifications

Reading Distance: From .5 in. (1.3 cm) to 18 in. (46 cm) on medium density codes

Reading Width: Width of actual bar code

7.5 mil code: 7 in. (18 cm) from nose, 3.5 in. (8.9 cm) wide

13 mil code: 12.5 in. (31.8 cm) from nose, 8.0 in (20.3 cm) wide

Resolution: 3 mil. at 4 in. (10 cm) distance

Scan Rate: Programmable to 270 scans per second

Drop Specifications: Operational after 50 drops from 5 ft. (1.53 m) to concrete

Symbologies: Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, RSS Code, Matrix 2 of 5, Code 11, Code 128, UPC, EAN/JAN, China Postal Code, RSS. 2005 Sunrise/GTIN compliant.

Interfaces: Connectivity options available for connecting to pc's and terminals.

3800GX5E: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, TTL level RS-232, IBM 46XX retail terminals, and Retail USB.

3800GX4E: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, and TTL level RS-232 Most popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, and TTL level RS-232.

Color: Available in Ivory (White) or Black

Warranty: Five Year Warranty

Honeywell 3800G14-USBKITE Linear Imager Data Sheet (.pdf 296KB)
Honeywell 3800G14 Quick Start Guide (.pdf 232KB)
Honeywell 3800G14-USBKITE User Guide Manual(.pdf 900KB)

---

---

Order Online the Honeywell 3800G14-USBKITE Extended Range Linear Imager BarCode Scanner, Color; Black, USB Kit. Part# 3800G14-USBKITE-BK. USB Kit includes: 3800g Imager, USB Type A Cable (P/N 42206161-01E), Length: 8.5 ft./2.6m, Quick Start Guide, RoHS. 5 Volt. Color: Black. Hand Free Flex Neck Stands are available separately, below. Warranty: 5 Year.

---
