MagTek Dynamag MagneSafe iDynamo 5 Secure Card Readers PCI DSS Compliant, DES Encrypted

MagTek Dynamag MagneSafe iDynamo 5 Secure Card Readers PCI DSS Compliant, DES Encrypted

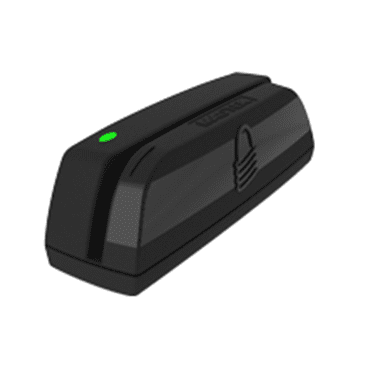

For customers that want both security and ease of use, the Dynamag Secure Card Reader Authenticator (SCRA) is MagneSafe™ secured and offers a reliable and convenient swipe path with complete security features for the peace of mind you can trust. Specifically designed to meet PCI DSS requirements to secure cardholder data, the Dynamag employs the industry standard, Triple DES encryption. The Dynamag is USB powered. This bi-directional SCRA conveniently makes any existing merchant application more secure.

The Dynamag enables retailers to “future proof” their POS applications with support for both today’s traditional applications and tomorrow’s advanced security requirements. The Dynamag is 100% interface compatible with all traditional MagTek® readers while also enabling advanced security features including card authentication, data encryption, and device/host authentication to be activated when higher security is demanded.

What is MagneSafe™?

MagneSafe Security Architecture is a foundation you can build on. The MagneSafe Security Architecture (MSA) has evolved exponentially from its inception in 2006 when MagTek delivered the industry's first Secure Card Reader Authenticators (SCRAs) for secure electronic transactions.

The MSA is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MSA leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.

A key feature of the MSA is MagnePrint® card authentication, a patented, proven technology which reliably identifies counterfeit credit cards, debit cards, gift cards, ATM cards and ID cards at the point of swipe, before fraud occurs. MSA's multi-layer security provides unmatched protection and flexibility for safer online transactions.

MagTek Dynamag Features & Benefits
■Reads up to 3 tracks
■Bi-directional read
■Reads ANSI/ISO/AAMVA cards plus some custom formats
■Supports USB HID or USB keyboard emulation interfaces.
Click here to change interfaces. No third party device driver is required
■USB powered
■Provides Red/Green/Amber LED for status
■Unique, non-changeable device serial number
■Triple DES Encryption
■DUKPT Key Management
■MagnePrint® Card Authentication
■Tokenization
■Device & Host Authentication
■MagneSafe 2.0 for seamless integration into an existing software and hardware infrastructure
■Masked Data

NEW! MagTek Dynamag MagneSafe Centurion PCI-DSS Compliant Secure Card Reader Authenticators. PCI DSS compliant w/Triple DES encryption.

MagTek Centurion Card Reader Specifications
General Interfaces: USB HID, USB Keyboard Emulation
Color: Black
Reference Standards: ISO 7810, ISO 7811, AAMVA
Recording Method: Two-frequency coherent phase (F2F)
Card Speed: 4 to 60 ips (10.1 to 152.4 cm/s)

Electrical
Power Input: 5V from USB bus
Current:
Normal mode: 110 mA maximum
Suspend Mode 500 uA maximum

Mechanical
Dimensions Length: 3.94” (100.0mm)
Width: 1.28” (32.5mm)
Height: 1.23” (31.3mm)
Weight Weight: 4.5 oz. (127.57 g)
Cable Length 6 ft.
Connector USB Type A plug

Environmental Temperature:
Operating -30 °C to 70 °C (-22 °F to 158 °F)
Storage -40 °C to 70 °C (-40 °F to 158 °F)
Humidity
Operating 10% to 90% noncondensing
Storage Storage
10% to 90% noncondensing
Altitude
Operating 0-10,000 ft. (0-3048 m.)
Storage 0-10,000 ft. (0-3048 m.)

MagTek Dynamag Retail Data Sheet (.pdf 314KB)
MagTek Dynamag MagneSafe Secure Card Reader Installation Guide (.pdf 450KB)
MagTek 21087013 DYNAMO 5 (GEN II) Data Sheet (325 KB)

*Now Available in MagneSafe Security Version 3.0***
**Available in USB - Keyboard Emulation and USB - HID
