Honeywell Metrologic ScanPal 2 - Direct Connect (without Cradle)

Honeywell Metrologic ScanPal 2 Portable Data Collector

The Metrologic ScanPal 2 is a compact, portable data collection terminal designed for daily use in applications such as inventory/ stock control, shipping/receiving, and more.

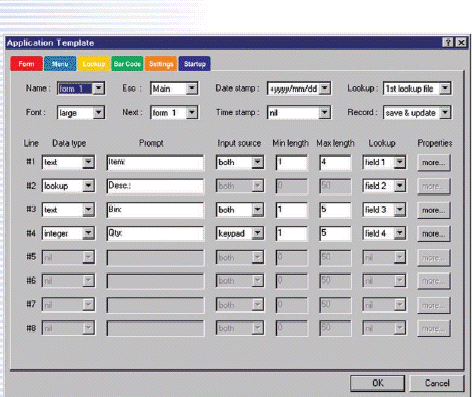

Create your own program in minutes by using the “Application Generator”. The unique application generator feature allows the user to create custom data collection templates quickly and easily on a PC, without writing any program code. The user is presented with a terminal Window screen on the PC to simulate the program’s running sequences on the actual terminal. A new application can be designed on-screen in only a few minutes, downloaded to the terminal, and data collection can begin immediately.Application Generator Screen Shot (.gif - 89KB)

Honeywell Metrologic ScanPal 2 Portable Data Collector Features & Benefits

Capable of storing over 50,000 records

Easy to use Application Generator and download software included

Supports "C" and Basic programming

2 ‘AAA’ batteries provide over 100 hours of operation

Optional rechargeable batteries and charging cradle

CCD bar code scan engine

Easy to read, backlit LCD screen

Upload via RS232, Keyboard, IR or wireless IrDA

ScanPal 2 Quick Specs

Depth of Field 30 mm - 160 mm (1.2" - 6.3") for 0.33 mm (13 mil) bar codes

Width of Field 124 mm (4.9") @ 160 mm (6.3")

Scan Speed 100 scan lines per second

Minimum Bar Width 0.102 mm (4 mil)

Dimensions 33.5 mm H x 145 mm D x 63 mm W (1.3" H x 5.7" D x 2.5" W)

Light Source 610 nm - 623 nm LED

Weight 180 g (6.3oz) - including batteries

Shock 1.2 m (4') drop to concrete

Battery Operation Two "AAA" batteries; optional one NiMH rechargeable battery

Data Memory 1 MB SRAM

Resolution 8 lines x 20 characters (max), 4 lines x 15 characters (min)

Manufacturers Warranty - 1 Year

Honeywell Metrologic ScanPal 2 Data Sheet (.pdf 574KB)
Honeywell Metrologic ScanPal 2 Installation Instructions (.pdf 256KB)
Honeywell Metrologic ScanPal 2 Application Generator Guide(.pdf 225KB)

---

Order Online the Honeywell Metrologic ScanPal 2 Portable Data Collector (P/N SCANPAL2CB). Includes the ScanPal 2 Portable Data Collector 16-bit CMOS 1MB RAM/1MB Flash - Alpha Numeric Function Scanner Keyboard - CCD. 2-AAA Alkaline Batteries, 9F RS232 Cable, CD with Application Generator Program and a Users Manual.
