Opticon OPN-2004-00 Companion Bar Code Reader USB Kit

Opticon OPN-2004-00 Companion Bar Code Reader USB Kit
Item# OPN2004-00
Regular price: $229.00
Web price: $109.90

Product Description

Opticon OPN-2004-00 Companion Bar Code Reader USB Kit
***Order Online the Opticon OPN-2004-00 Compact Laser Bar Code Reader Kit. Includes: FLASH ROM 512KB, USB Data/Charging Cable, Lanyard, Quick Start Guide. Color: Black on Black. Holds up to 10,000 scans***

Companion Scanner Date and Time Stamp Settings for time sensitive applications
Date Stamp SettingsTime Stamp SettingsDefault
Disable*Disable*Default
YYYY-MM-DDHH:MM:SSDefault
YYYY/MM/DDHH:MM:SS AMDefault
YYYYMMDDHHMMSSDefault
MM-DD-YYYYHHMMSSAMDefault
YYYYMMDDHHMMSSDefault
MM-DD-YYYYHHMMSSAMDefault
MM/DD/YYYYHH:MMDefault
MM.DD.YYYYHH:MM AMDefault
MMDDYYYYHHMMDefault
DD-MM-YYYYHHMMAMDefault
DD/MM/YYYYNADefault
DD.MM.YYYYNADefault
DDMMYYYYNADefault


The OPN-2004 does not have a time stamp application pre-installed but the OPN-2004 can be programmed to output a time stamp with the barcode data at the time of a scan using a scan sheet similar to the one linked just below while in HID-mode. Or in VCP-mode you can also get a time stamp using the OPN PC Companion Application

The fully programmable OPN-2004 Companion Scanner makes barcode data collection simple. Scan a barcode and it is automatically stored. Leverage the free OPN-2004 Software Development Kit to customize scanning behavior for targeted applications in inventory control, healthcare and retail.

For easy data transfer, the device is equipped with a standard USB port, which is also used to charge the internal battery. The OPN-2004 stores up to 10,000 barcodes plus timestamps. OPN-2004 product highlights include:

Opticon OPN2004 Features & Benefits
  • Color: Black on Black. Holds up to 10,000 scans
  • One-touch barcode scanning makes data collection simple and easy.
  • Fully-programmable with free OPN-2004 firmware development kit optimize scanning behavior for target application
  • Small form-factor (2.44 x 1.26 x 0.69) device fits easily into pocket or on a key chain
  • Ships pre-loaded with basic firmware scanning application for quick start up time vConveniently holds up to 10,000 barcodes in 1 MB of memory
  • Two-year warranty protects your investment
  • The OPN2004 is compatible with Windows 7, 8, and 8.1, XP, Vista; 10 and Mac OS X 10.4 or later.
  • Simple, one-touch scanning
  • Most affordable batch USB scanner
  • Small form factor - weighs only 1.1 oz
  • 100 scans/second laser barcode scanner
  • Stores over 10,000 barcodes plus timestamps
  • Long life Lithium-Ion battery
  • Internal battery is rechargeable via USB port
  • Audible feedback after a successful scan
  • Straightforward USB interface
  • Optional: USB-HID, USB-VCP

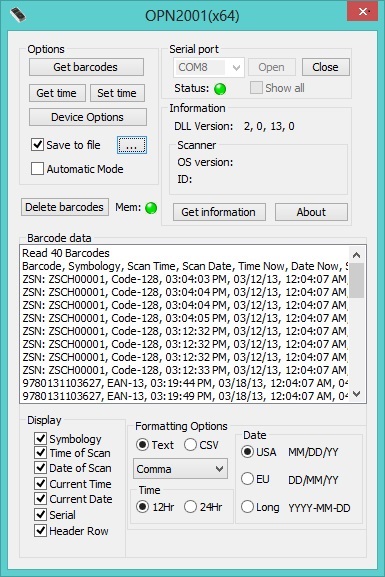

    Opticon OPN2001, OPN2002, OPN2003, OPN2004 Time & Date Stamp Screen Shot.

    The OPN200X communicates with the OPN200X Companion Software. By default the date and time are included in the data that is downloaded using this software. That data can then be set up to automatically save to a location on your computer. Attached is a screenshot that shows the information that is retrieved through the OPN Companion Software as well as the file that can be generated.


    Opticon OPN-2004 Laser, USB Companion Scanner (.pdf 326KB)
    Opticon OPN2000 Series Sales Guide (.pdf 931 KB)
    Opticon Configuration Webpage

    ***Order Online the Opticon OPN-2004-00 Compact Laser Bar Code Reader Kit. Includes: FLASH ROM 512KB, USB Data/Charging Cable, Lanyard, Quick Start Guide. Color: Black on Black. Holds up to 10,000 scans***
