Unitech MS120-NKCB00-SG Keyboard Wedge Pen Wand Bar Code Scanner (Stainless Steel, decoded, with keyboard wedge cable, PS/2 MiniDIN connector), RoHS. Replaces p/n MS120-3PS2G

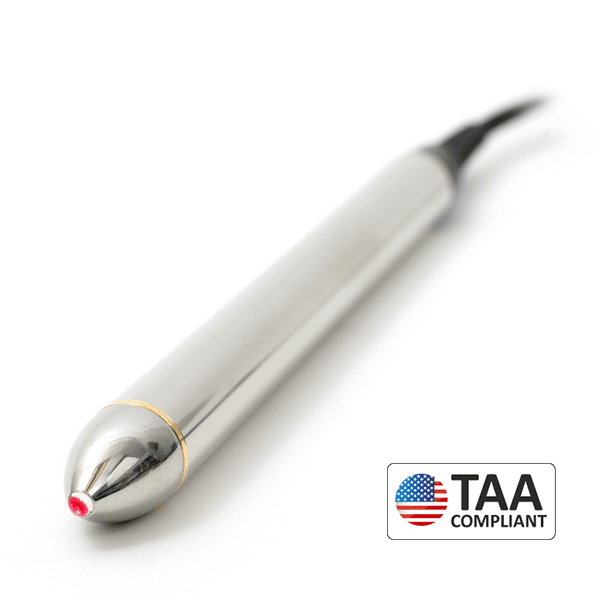

Unitech MS120-NKCB00-SG Keyboard Wedge Pen Wand Bar Code Scanner

To connect via USB - Order Unitech Adapter Cable P/N PW201-3G, below!

The Unitech MS120 series bar code wands are targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert bar code labels into a high quality digital signal. Able to read color, faded and low contrast barcodes quickly and accurately, the MS120 is a proven bar code reading solution. Moreover, the polished sapphire tip reduces wear on labels and is also easily replaced if damaged. The MS120 is available with three different interfaces. The MS120A is an undecoded model which interfaces via a 9pin squeeze release connector.

The Unitech MS120-2 has an RS232 interface with a built in decoder. With a keyboard wedge (AT or PS/2) interface the MS120-3 also has a built-in decoder.

Its shape gives the MS120 the comfort and handling of a normal ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the "good read" beep that lets you know the data has been successfully captured. It doesn't get any easier than that.

Unitech MS120-3 Keyboard Wedge Pen Wand Scanner

Light Source: 650 ~ 660nm Red LED

Resolution: 5 mils (0.127mm)

Rugged, lightweight design.

Easy to use and configure.

Low power consumption.

Wide read angle (0 ~ 45°).

High scan speed (5 ~ 200 cm/sec).

Durable, replaceable saphire tip.

Keyboard wedge and RS232 interfaces available.

Rugged, lightweight design,easy to use and configure with low power consumption and wide read angle.

Bar Code Symbologies Supported:

China Postal Code

Codabar

Code 11 Code 32

Code 39 (full ASCII)

Code 39 (Standard)

Code 93

Code 128

Delta Code

EAN-8 with add-on code

EAN-13 with add-on code

EAN 128

Interleaved 2 of 5

ISBN / Bookland

EAN

ISBT 128

Italian Pharmacy

Label Code IV

Label Code V

MSI / Plessey

Standard 2 of 5

Toshiba Code

UPC-A with add-on code

UPC-E with add-on code

Ideal for use with: School library, school cafeteria, medical office, hospital, manufacturing, industrial application(s), and field application(s)

RoHS Compliant
Unitech MS120 Pen Wand Data Sheet (.pdf 291KB)
Unitech MS120 Pen Wand User Manual (.pdf 165KB)

---

Order Online the Unitech MS120-NKCB00-SG Pen Wand Keyboard Wedge Scanner (P/N MS120-NKCB00-SG). Includes a stainless steel wand, decoded, with keyboard wedge cable (PS/2 MiniDIN connector), RoHS compliant. Replaces p/n MS120-3PS2G
Connect via USB - Order Unitech Adapter Cable P/N PW201-3G, see below!

---
