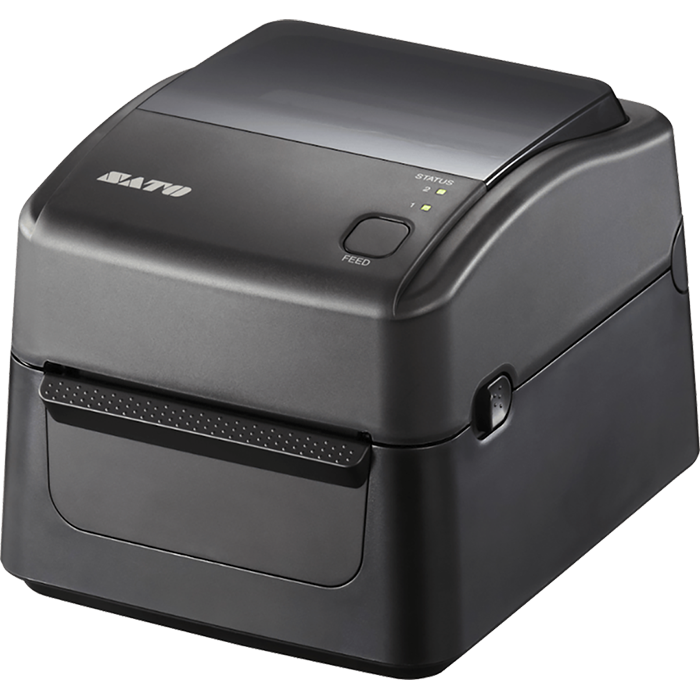

SATO WS412 Direct Thermal 305 DPI, USB, RS232, LAN (NA), Desktop Printer, Black

The SATO WS4 Series of 4-inch desktop thermal printers are feature-rich and affordably priced with great production throughput. Available in direct thermal (DT) or thermal transfer (TT), the WS4 offers exceptional print quality at either 203 dpi or 300 dpi with print speeds of up to 6 ips.

Specs:
Cutter: No
Duty Cycle Labels/Day: 500
Flash Memory: 16
LCD Screen: No
Maximum Print Width: 4.09" (103.8mm)
Maximum Print Width (Approx.): 4 inch
Media Roll Core Diameter: 1" - 1.5" (25.4mm - 38.1mm)
Media Roll Outer Diameter: 5" (127mm)
Media Sensor: Gap/Mark:
Peel/Present: No
Power: Auto-Switching
Power Cord: US
Power Supply Included: Yes
Printer Interface: USB, RS-232, Ethernet
Print Resolution DPI: 300
Print Speed (ips/mmps): 4ips (101.6mmps)
Print Technology: Direct Thermal
Rewind: none
RFID Enabled No
Ribbon Wound n/a
SDRAM Memory 128

---

Maximizing Performance, Versatility and Investment
Flexible and versatile, the WS4 boasts a ribbon capacity of 984 feet, reducing the need for frequent ribbon changes. When integrated with its optional external media stand, as well as both the increased ribbon capacity and industry-standard media rolls with an 8-inch outside diameter, the WS4 significantly expands its functionality to what is normally present in larger tabletop printer models at a fraction of the price. The WS4 allows for straightforward replacement of its print head or platen roller, so it can quickly return to full operation after maintenance. Designed with connectivity in mind, the WS4 printer has USB, RS-232 and Ethernet interfaces as standard. It also features optional Bluetooth or 802.11 WLAN communication interfaces, further expanding its versatility.

Easy to Use
Small footprint design
High-speed throughput (Maximum of 6ips)
Easy firmware download via USB
Straightforward platen roller and print head replacement
Three-color status LED

Enhanced Connectivity
Standard Ethernet, USB and RS-232
Optional Bluetooth, wireless LAN
IPv4/IPv6 Support
Multiple printer emulations (SZPL, SEPL, SDPL, SIPL)

Flexible Label and Ribbon Capability
984-foot ribbon capacity
Compatible with wound-in or wound-out labels and ribbons
Adjustable I-mark sensor
Versatile ribbon core sizes (inner diameters of 0.5-inch or 1-inch)

Cerner-Validated
SATO WS4 compact desktop label printers are fully Cerner-validated peripheral devices for native use within the Cerner health IT system to ensure patient safety, quality and efficacy.

SATO WS4 printers are designed for wide use throughout the healthcare supply chain, notably for printing patient wristbands, specimen pathology labels and other labels used in hospitals. They can be deployed at various points in the supply chain, from clinical labs to pharmacies, medical checkup centers, clinics and hospitals.

SATO is a GS1 Healthcare member that promotes widespread serialization through the global healthcare supply chain to ensure patient safety and comfort.

WS4 Printer Applications
Asset management
Bag tags
Boarding/admission passes
Coupons and promotions
Evidence tracking
GTIN and FDA compliance
Pallet and carton management
Parking passes
Patient identification
Pharmacy and product labeling
Price marking
Shipping and receiving labels
Specimen and slide labels
Visitor ID
Warehouse picking and put-away
Work-in-progress and product labeling

---

SATO WS4 DT Desktop Printer Datasheet (340KB .pdf)

Order Online the SATO WD302-405NN-EX1-2 WS412 Direct Thermal Desktop Printer: 305 DPI, USB, RS232, LAN (NA), Color: Black.

---
