Datalogic Gryphon GFS4100 (1D) - GFS4400 (1D/2D) - GFS4500 Red Illumination (1D/2D - Fixed Mount BarCode Scanners (USB, RS232)

Datalogic Gryphon GFS4100 (1D) - GFS4400 (1D/2D) - GFS4500 Red Illumination (1D/2D - Fixed Mount BarCode Scanners (USB, RS232)

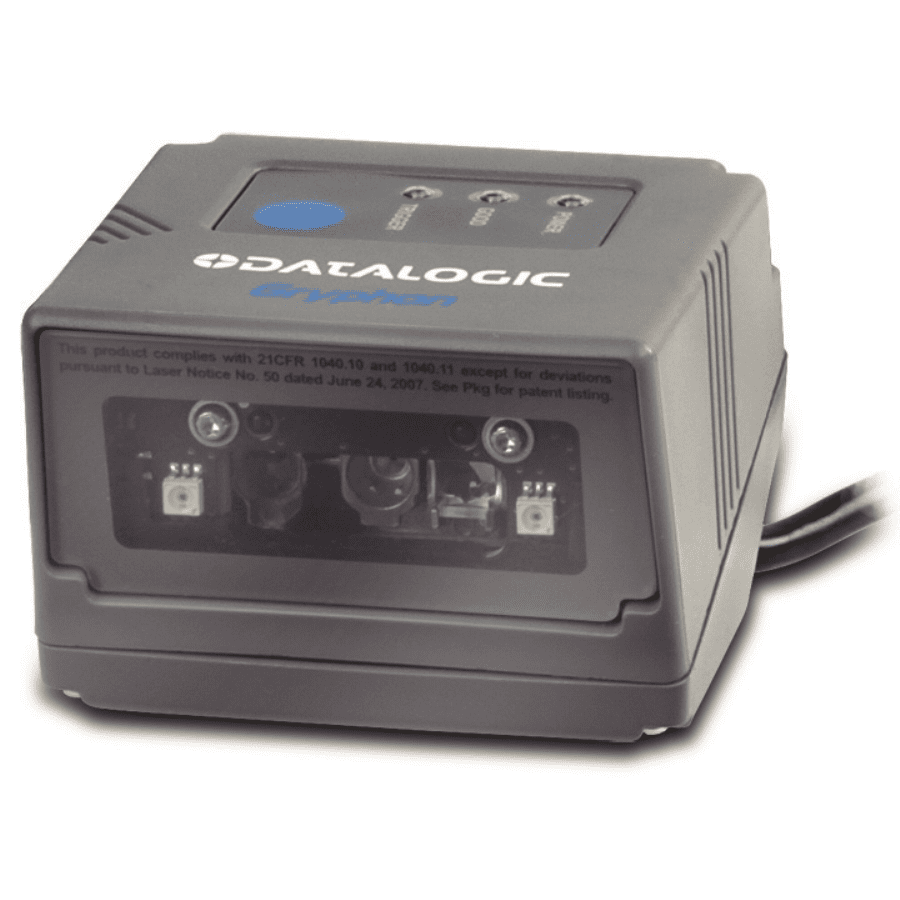

Using advanced imaging technology, the Gryphon GFS4100 fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.

Designed for easy integration, the Gryphon I GFS4100 reader provides a simple ‘plug-and-play’ solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable and reliable scanning performance.

The Gryphon I GFS4100 OEM module shares the same excellent reading characteristics found in the premium line of Gryphon™ 4100 series of handheld devices. Featuring outstanding near-field reading, a wide angle field-of-view, improved motion tolerance and snappy reading, it also offers integrators excellent performance on decoding poor or damaged codes. As with all Gryphon readers, the GFS4100 reader offers users additional good-read visual confirmation with Datalogic’s patented ‘Green Spot’ technology.

The Gryphon I GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.

Datalogic GFS4170 Gryphon Fixed Mount Imager - Bar Code Reder

High-speed imaging for fast moving codes

Read rate: 320 reads/second

Excellent near-field reading at the scan window

Supports all common linear (1D) bar codes including GS1 DataBar™

Reads high resolution bar codes up to 3 mils

Datalogic’s patented Green Spot for good-read feedback

Integrated good-read beeper

Automatic sensing or manual trigger options available

Integrated interface cable

High-impact resin creates a solvent-tolerant enclosure

Water and Particulate Sealing Rating: IP54

Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications

3 Year Warranty

Datalogic Gryphon GFS4100 (1D) Fixed Mount Scanner Data Sheet (.pdf 331KB)
Datalogic Gryphon GFS4400 (1D/2D) Fixed Mount Scanner Data Sheet (.pdf 356KB)
Datalogic GFS4400 2D Fixed Mount Imager Competitive Analysis (.pdf 511KB)
Datalogic_BarCode_Scan_Test_Sheet_1D_2D_PDF417_Symbologies (.pdf 120KB)

---

*Order Online the Datalogic Gryphon GFS4100 Fixed Mount Scanner, 1D Linear Imager, USB Kit. USB Cable included. Warranty: 3 Years. Order button is at the top of the page (p/n GFS4170)

---
