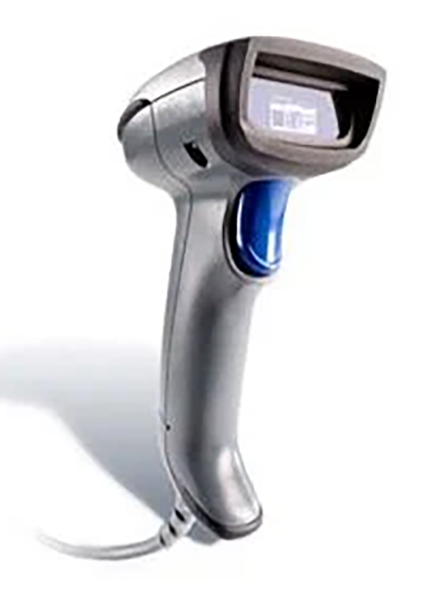

Honeywell Intermec SR30 EV12 and EA15 1D and 2D Bar Code Scanner

*The Intermec SR30 has been replaced by the Honeywell Xenon XP 1950 Corded Hand Held Area Imager (1D/2D/PDF)

---

The Intermec SR30 handheld scanner offers the optimum combination of performance, durability, ergonomics and investment protection for applications in office and light industrial settings. Designed to automatically adapt to different interfaces, the SR30 is fast and easy to install, and equally easy to reconfigure. Built for productivity, the lightweight SR30 integrates patented Intermec Vista linear imaging technology to deliver fast, always-accurate scanning even when bar codes are damaged or poorly printed. Area imager versions of the SR30 include support for popular 1D and 2D barcodes as well as image capture capability. Items are scanned without having to orient the SR30 to the barcode thereby increasing productivity in scan-intensive environments.

The Intermec SR30’s auto-adapting capabilities simplify installation, enabling instant connectivity to Intermec mobile or fixed mount computers and personal computers. Users can easily connect the scanner to the host and start scanning immediately.

When new application requirements arise, the user only needs to change the interface cables, not the device itself. This flexibility reduces device costs and complexity for both user companies and their information technology suppliers. Inventory needs are simplified, and user training costs are reduced.

The Intermec SR30 handheld scanner includes the Intermec EasySet™ software set-up tool for easy configuration and personalization. The user can quickly select beeper tones and volumes, good read and error read responses, and many other preferences. In addition, the SR30 can be configured for data editing. This enables the user to scan barcode data, edit it via the scanner, and only transmit desired output to the host. Snappy and accurate, the Intermec SR30 handheld scanner streamlines light industrial data capture applications.

Intermec SR30 1D Linear/2D Area Imager Features & Benefits

Linear imager with patented Vista • decoding, offering aggressive scanning, even with damaged barcodes.

Area imager to future-proof your solution – supporting the trend towards 2D barcodes.

Auto-sensing cables for quick and easy setup • and investment protection (allowing you to swap seamlessly from one cable to another).

The ability to withstand 26 drops to • concrete from a height of 1.5m means increased reliability in the field.

Auto-adapting interface enables fast and easy connectivity

Interface flexibility reduces need for multiple devices, saving costs

Common POS peripherals and software supported

Patented Vista™ scanning technology reads damaged or poorly printed bar codes

Aggressive scan rate (225 scans/per second)

Easy configuration and personalization

Aiming - The IT4410 has a bright, intuitive aiming line.

Supports data editing

Lightweight and comfortable to hold

Warranty: 5 Year Manufacturer Warranty

Intermec SR30 1D Linear/2D Area Imager Bar Code Reader Quick Specs
Physical Characteristics Length: 168 mm (6.6 in)
Width: 72.5 mm (2.9 in)
Depth: 107.9 mm (4.25 in)
Weight: 180 g (6.35 oz)

Power
SR30 is powered via host or universal 5 volt power supply.

Connectivity
Tethered interface to Intermec computers, personal computers, IBM terminals, and NCR terminals.
Current Intermec computers: 700 series, CK30, CK31,CK60, CV30, CV60
Legacy Intermec computers: 2435, 5055, 6400, 242x,2455, 2475, 246x, 248x, and 5020
IBM terminals: 4693, 4694, SureOne POS, SurePOS 300, SurePOS 500, SurePOS 700
NCR terminals: RealPOS 20, RealPOS 30, RealPOS 70,and RealPOS 80

Scan Technology
Intermec Linear Imager EV12
Supported Bar Code Symbologies
UPC (E&A), EAN, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen.

Environment
Operating temperature: 0° C to 50° C (32° F to 122° F)
Storage temperature: -20° C to 60° C (-4° F to 140° F)
Humidity: 0 to 95% RH, Non-condensing
Drop survival: 26 drops to concrete or steel surface from a height of 1.5 m (5 ft)
Seal rating: IP30
Ambient light: Works in any lighting conditions from 0 to 100,000 lux

Scanning Performance
Scanrate: S1800 VT: 225scan/s
Min. x dimension: Down to 0.05mm (2 mil) (Intermec decoding technology)
Depth of field: From 0cm to 49.2cm (19.4")
Bar code width: Up to 18cm (7") on 0.3mm/12mil resolution code
Print Contrast: Down to 25%
Scan Angle: 48°
Skew: +- 35°
Pitch: +- 35°

Scan Technology
Intermec Linear Imager EV12
Intermec Area Imager EA15
Supported Bar Code Symbologies (EV12)
UPC (E&A), EAN, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen

Supported Bar Code Symbologies (EA15) Same as EV12 plus:
Austraila Post, Aztec, BPO, Canada Post, Codablock, Data Matrix, Dutch Post, EAN/UCC Composite, Japan Post, Maxicode, PDF417/Micro PDF417, Planet, Postnet, QR Code, TLC 39, Swedish Post, Infomail

Intermec SR30 Linear/Area 1D - 2D Imager Data Sheet (.pdf 172KB)
Intermec SR30 Linear/Area 1D - 2D Imager User Guide (.pdf 1.7MB)

---

*Order Online the Intermec SR30 Linear Imager Keyboard Wedge Kit. Includes Linear Imager EV12 and Y Wedge Cable PS2, (Y cable connection, length: 6.5 ft.) and User Guide.
Note: Holder accessories available for the SR30 scanner include desktop stand, wall mount holder, and hands-free stand.

---
